rigging motor for stage contruction

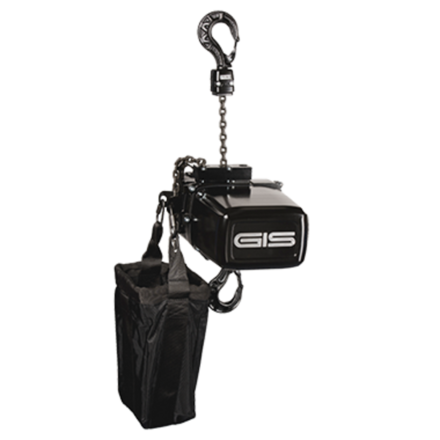

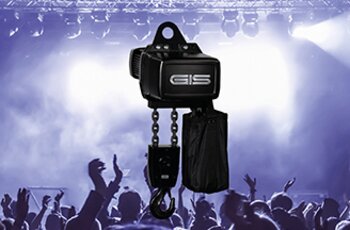

Electric chain hoist LP D8+

LPM250, LP500 - 2500, up to 3200 kg

Reliable and long-lasting

  • 3 year warranty
  • Safe: Chain safety factor minimum 8-times
  • Weatherproof: Protection class IP65 as standard

Easy to operate

  • Usable as stationary or climbing hoist without modification
  • Quiet running: with 3-step drive and helical gearing
  • Simple: Polygonal design for an easy maintenance

Customer specific

  • Different operating and control voltages
  • Second brake without housing extension
  • Wide range of accessories and options

Technical specifications

Standard version

D8 Plus motor

In accordance with EN14492-2, SQP2:2018, DIN56950, EN17206


Maximum load capacities

LPM250: 250 kg, LP500: 500 kg, LP1000: 1000 kg, LP1600: 1600 kg, LP2500: 2500 kg (1 fall) / 3200 kg (2 falls)


Chain safety

Minimum 8:1


Standard voltages

3 × 400 V / 50 Hz, 3 × 230 V / 50 Hz
1 × 115 V / 50 Hz, 1 × 230 V / 50 Hz


3 phase motor

1 or 2 lifting speeds


1 phase motor

1 lifting speed


Control

Direct control


Protection class

IP65


Suspension

Eyebolt or hook suspension


Use

Usable as stationary or climbing hoist


Isolation class (motor)


Material

Housing and cover made of aluminum


Colour

Housing, chain and equipping parts black


Brakes

Two independent DC spring-loaded brakes


Load hook

With interlocking hook lug, dampening system


Overload protection

Slipping clutch adjustable and not in the flow of forces


Other properties
  • Suitable for frequency inverted operation
  • Liquid drain for outdoor use

Customer's benefit

Powerful
The case hardened and manganese phosphated profile steel chain provides about 15 % more capacity at an identical nominal diameter when compared to the traditional round steel chain. The larger cross-sectional area reduces wear and increases the lifetime of the chain. The load hook with stable, guided hook latch and safety rubber buffer provides maximum safety.

Weatherproof
The cathodic dip-paint coating (KTL coating) offers good protection against mechanical wear and high UV resistance. A feature of the hoist motor is the protection class IP65. It is dust proof and protected against water jets. The LP is perfectly suitable for outside use, even under the most arduous conditions. On open-air events or on concert tours, the rigging professional will appreciate  the weather resistance and reliability of these electric chain motors.

Brake
The load is secured by two independent DC-spring loaded brakes. The GIS motor is designed as standard for mounting a second brake without the need for a housing extension. The second brake can be assembled on the existing shaft in just a few simple steps. This concept means that the motor is light and compact.

Compact
LPM250 and the LP500 are modular in design with compact construction which is why they are perfectly suited for integration in trusses. LPM250 fits in the 300 mm square truss and LP500 in the 400 mm square truss. Regardless of its compact size, wearing parts can be replaced in a simple manner, making it the hoist technicians’ friend as well.

Accessories & options

  • 42 V low voltage control with geared limit switch
  • Worldwide operating and control voltages
  • Lifting speeds up to 32 m/min at 50 Hz
  • Safety load locking hook
  • Geared limit switch with two additional emergency stops
  • Safety radio remote control
  • Ergonomic control switch on cable
  • Preparation for encoder on chain wheel or rotor shaft
  • Incremental encoder for path measurement
  • Eyebolt or hook suspension for load sensor
  • Load sensor 0 - 10 V or 4 - 20 mA, mechanical protection
  • Temperature monitoring
  • Chain container for various lifting heights
  • Handles
  • Brake monitoring
  • Flight Cases (LPM250 and LP500)
  • Briefcase controller 2- or 4-ways
  • Power and control cable with plug
  • Push trolley and motorised trolley

Gallery

Lightweight electric chain hoist for stage constructionElectric chain hoists carry trusses with lightingChain motor holds lighting elements above people in hotel lobbyChain hoists hold steel construction with lamp systemEntertainment chain hoist attached to truss for holding speaker systemsClimbing hoist is attached to truss, which is then equipped with loudspeaker and spotlight chain motors hold scaffolding with loudspeaker systemChain hoist in mobile use in stage constructionStage construction with electric chain hoists at an outdoor music event Climbing hoists LP hold loudspeaker system during construction of a concert stageD8+ electric chain hoist holding truss in cultural center

Videos

spare parts

Discover GISspares

GISspares is the spare parts platform for several generations of GIS electric chain hoists and trolleys. Order original spare parts online, uncomplicated and fast with just a few clicks.

News about this product

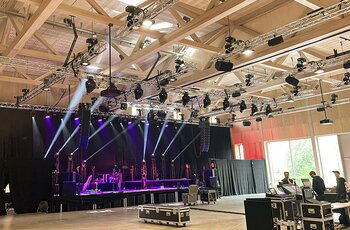

The concert hall with the basic framework of the rigging system with electric chain hoists and motor trolleys
