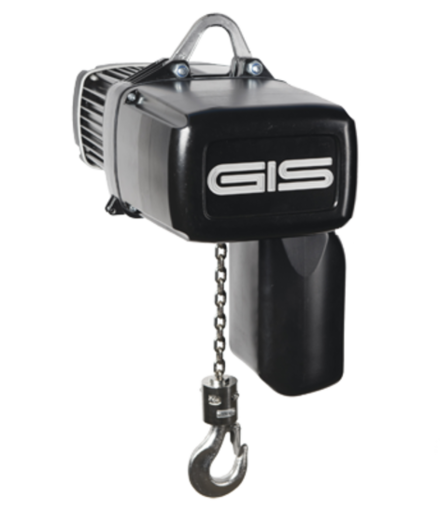

Electric chain hoist for outdoor application and use in food production

Corrosion resistant electric chain hoist

GPR500 + 1000, up to 1250 kg
  • Corrosion resistant electric chain hoist
  • Chain hoist for use in for use in food, pharmaceutical or chemical industry, wastewater treatment plants, outdoor use
  • Housing cataphorese coated
  • Round, stainless steel chain
  • Suspension of the chain hoist corrosion resistant
  • All parts in contact with the chain (wearing parts such as chain wheel, load hooks, screws) in corrosion resistant version
  • Protection class IP65
  • Special grease for food industry
  • Option: overpressure release valve
  • Option: manual or motorised trolley in corrosion resistant version

Technical specifications

Standard version

Maximum load capacities (1 or 2 falls)

GPR500: 320/630 kg, GPR1000: 630/1250 kg


Standard voltages

3 × 400 V / 50 Hz, 3 × 230 V / 50 Hz
1 × 115 V / 50 Hz, 1 × 230 V / 50 Hz


3 phase motor

1 or 2 lifting speeds


1 phase motor

1 lifting speed


Control

42 V low voltage control


Protection class

IP65


Suspension

Eyebolt suspension


Standard lifting height

3 m


Control switch

Ergonomic control switch with emergency-stop and external strain relief


Control cable length

1,8 m


Limit switch

Geared limit switches for highest and lowest hook position


Isolation class (motor)


Brake

DC spring-loaded brake


Overload protection

Slipping clutch adjustable and not in the flow of forces


Special features:

  • Protection class IP65
  • Chain, suspension, double fall hook clamp, single fall hook clamp, chain guide and load hook made of stainless steel
  • Housing and Covers KTL coated, resistant against water, oils, scant alkalis and acids
  • Food proofed gear grease

Customer's benefit

In the food sector, such as in cheese dairies, butcheries or other food processing companies, particularly high demands are placed on electric chain hoists and crane systems. They are often used in rooms where there are aggressive vapours in the atmosphere due to the immersion baths. In addition, the equipment must be protected against the strong cleaning agents that have to be used because of the increased hygiene requirements.

The electric chain hoist in rust-resistant design is the ideal solution for this work area. All parts in contact with the chain (equipment such as chain wheel, load hook, screws) are made of corrosion-resistant material, the load chain is made of stainless steel. The chain hoist housing has a scratch-resistant KTL coating that provides protection against mechanical stress and has a high UV resistance. For hygienic reasons, only lubricants that are compatible with foodstuffs are used for the gearbox and the load chain.

Due to the design of the chain hoist to protection class IP65, it is dust-tight and protected against jet water as standard. This makes the GPR hoist suitable not only for use in the food industry, but also for applications in waste water treatment plants, pumping stations, outdoor applications in general, but also in the chemical industry, as well as in pharmaceutical plants.

Accessories & options

  • Direct control, special control
  • Worldwide operating and control voltages
  • Geared limit switch with two additional emergency stops
  • Parallel switching of several chain hoists
  • Operating hours and switching counter
  • Temperature monitoring to protect the motor against overheating
  • Brake with manual release
  • Chain bucket for various lifting heights
  • Hook suspension
  • Electric and push trolleys
  • Gear grease for low temperature
  • Radio remote control
  • Frequency inverter
  • ATEX version

Gallery

A radio-controlled stainless steel underslung travelling crane is used to transport cheese loavesRust-resistant crane lifts rack with cheese from salt bath in cheese dairyAn electric chain hoist made of rust-resistant material is used in food productionElectric chain hoist in corrosion-resistant design for food productionA workplace in food production is equipped with a rust-resistant suspension crane
