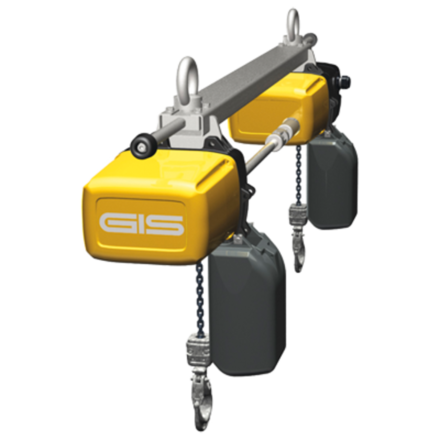

Synchronised hoist

GPS500 + 1000, up to 2 x 2500 kg
  • Synchronised electric chain hoist for transportation of large and bulky loads
  • Precise parallel run of two hooks without twisting the load
  • 2 electric chain hoists connected electrically and mechanically
  • With temperature monitoring
  • Hook position individually adjustable by geared limit switch
  • Distance between load hooks 0.7-5.0 m
  • Perfect to combine with GISKB suspended crane or travelling crane
  • Option: with trolleys
  • Option: with frequency inverter
  • Option: customised devices for load handling

Technical specifications

Standard version

Maximum load capacities (1 or 2 falls)

GPS500: 2x630/2x1250 kg, GPS1000: 2x1250/2x2500 kg


Distance between load hooks

0.7 - 5.0 m


Standard voltages

3 × 400 V / 50 Hz, 3 × 230 V / 50 Hz


3 phase motor

2 lifting speeds


Control

42 V low voltage control


Protection class

IP33


Suspension

Eyebolt suspensions


Standard lifting height

3 m


Control switch

Ergonomic control switch with emergency-stop and external strain relief


Control cable length

1,8 m


Limit switch

Geared limit switches for highest and lowest hook position


Isolation class (motor)


Brake

DC spring-loaded brake


Overload protection

Slipping clutch adjustable and not in the flow of forces


Customer's benefit

The GIS Synchron is ideal for transporting long bulky loads.
The appropriate synchronous lifting of the hoist and the accurate levelling of the two load hooks assure precise positioning of the load without undesirable rotation.
This kind of hoist is used in the automobile and printing industries among other applications.

Accessories & options

  • Direct control, special control
  • Worldwide operating and control voltages
  • Geared limit switch with two additional emergency stops
  • Operating data counter
  • Frequency inverter
  • Brake with manual release
  • Chain bucket for various lifting heights
  • Hook suspensions
  • Safety load hook
  • Electric and push trolleys
  • Radio remote control

Gallery

Console crane with pick-up device for metal rodsIn a printing plant, rolls of paper are lifted with a synchronous chain hoistLarge wooden boards are lifted and transported with a synchronous hoist with vacuum lifter
