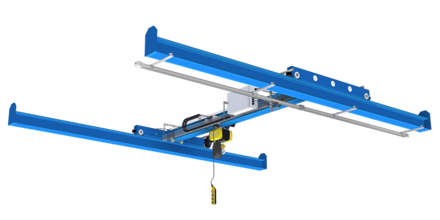

overhead crane for transporting goods in production halls

Overhead travelling crane

up to 6300 kg
  • As single- or double-bridge travelling crane
  • Construction with standardised beams
  • The welded crane rail serves as guidance and keeps the crane bridge in the track
  • Large hook dimension through crane bridge placed on crane track
  • Control switch on trolley or control switch independent of trolley (roving pendent) or radio remote control
  • Crane track fixation on supports (free standing system) or on wall / pillar
  • Drives stepless or pole-changeable
  • Very quiet running
  • Longitudinal power supply with conductor line or C-rail
  • Central crane control 42 V
  • Option: multiple crane bridges (tandem operation)

Technical specifications

Standard version

Maximum load capacity

6300 kg


Execution

Single or double bridge travelling crane,  with or without low headroom construction to optimize the overall height


Profiles

Use of commercial I- or H- standardised steel profiles


Colour crane bridge

Honey yellow RAL 1005


Colour crane track

Grey primed RAL 7035


Crane and cross travel

Manually or electrically (Fixed travelling speeds 25/6 m/min or frequency controlled )


Control

42 V contactor control with central control unit box


Control switch

Control via control button top unit directly on the chain hoist, roving pendent or radio remote control


Power supply

Trailing cable, C-rail, conductor line or energy chain


Crane track

50 x 30 mm


Crane track fixation

To ceiling, pillars or steel beams, mounted directly or distanced


Customer's benefit

Robust and durable crane systems for long-term, safe use. All of our electric drives and electric chain hoists are state of the art. The calculation basis and calculations meet national and international standards.
Our way to construct convinces through its simplicity, combined with durability and reliability. We rely on decades of experience as a manufacturer of travelling cranes and on our know how to respond to customer-specific requirements. All from a single source.

Accessories & options

  • Free standing system
  • Special paints or galvanised version
  • Travelling cranes for outdoor use
  • Corrosion resistant (food compatible)
  • Several crane bridges on crane track
  • Crane track 60x40 mm or on a wooden beam
  • Sound-deadening supports
  • Fast and fine transition shutdown
  • Ripcord shutdown
  • Two-stage limit switch
  • Various versions for suitable hook dimension
  • Bypass control
  • Transport and installation work
  • Acceptance and commissioning with training of personnel
